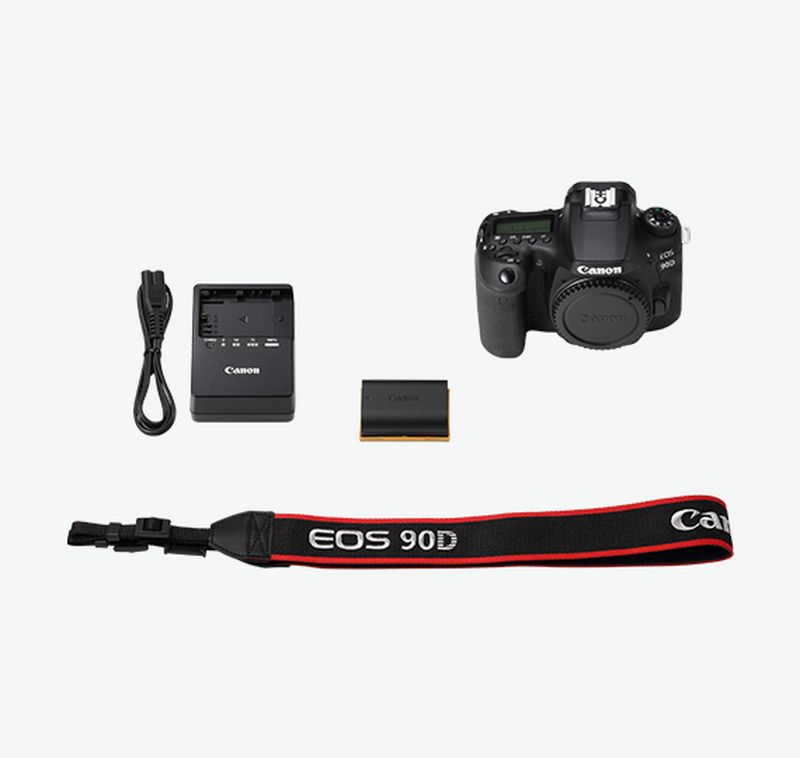

Canon EOS 90D Camera Body
Description
Fast DSLR performance that takes you closer…
A perfect balance of speed, image quality and portability – ideal for getting close to nature and capturing fast-moving sports.
)
Ideal for sports and wildlife photography
The EOS 90D is built around an 32.5MP APS-C sensor that gives lenses 1.6x the telephoto reach they would have on a full-frame camera. Great for those times when you need to be right in amongst the action.
See the EOS 90D in action on location
The freedom to crop and recompose
Full resolution pictures from the 32.5 megapixel EOS 90D can be cropped, rotated and resized with image quality detailed enough for large prints. Find scenes within a scene and adjust your composition for the perfect result.
)
CROP CREATIVELY
)
100% CROP
)
Catch the most fleeting moments
Reveal the moments it’s impossible to see with the naked eye, shooting 32.5 megapixel images at up to 10 frames per second. High ISO sensitivities (up to ISO 25,600) let you freeze action with breathtakingly fast shutter speeds, as a quick as 1/8000sec.
)
Take a clearer view
The EOS 90D has a bright, approx.100% coverage optical viewfinder that lets you view action as it happens and makes it easier to track fast-moving subjects, such as birds in flight. An intelligent customisable display shows key shooting information, so you always know what’s happening even when the pressure is on.
EOS 90D’s Vari-Angle touchscreen lets you shoot comfortably from different angles. You can focus and shoot with a single tap, making this a very intuitive way to work.
)
Fast as lightning, sharp as a pin
Even the quickest subjects are tracked and kept pin-sharp, thanks to an advanced autofocusing system. 45 cross-type AF points work with a 220,000-pixel RGB+IR exposure sensor for outstanding low-light sensitivity as well as subject recognition.
)
A photographer’s camera
The EOS 90D is the latest in a long line of DSLRs from Canon, each one a refinement and evolution on the last. This re-assuring yet customisable design feels instinctive from the moment you pick it up – controls fall perfectly under fingers and thumbs and the camera is very well balanced with both long telephoto and short, wide-angle lenses from Canon’s extensive range of optics.
)
Connected to your digital life
Built-in Bluetooth and Wi-Fi adds another dimension to your creativity. The EOS 90D works together with smart devices running the Canon Camera Connect app* to make it easy to share images via messaging and social media. It’s also possible to control the camera remotely, for alternative viewpoints.
* Bluetooth functionality with Camera Connect app requires smart device to be equipped with Bluetooth version 4.0 (or later). Also requires smart device to be using operating system iOS 11.4 (or later) or Android 5.0 (or later) see specifications for detailsDiscover more
)
Unleash your inner film director
The EOS 90D is superb filmmaking tool, with the ability to shoot resolutions up to 4K and frame rates up to 120p in Full HD mode. Our superb Dual Pixel CMOS AF focusing system keeps things looking sharp and cinematic. Microphone and headphone connections let you capture a soundtrack that’s every bit as good as the imagery.
Technical Specs
Specifications in detail
Image Sensor
Type
22.3mm x 14.8mm CMOS
Effective Pixels
Approx. 32.5 MP
Total Pixels
Approx. 34.4 MP
Aspect Ratio
3:2
Low-Pass Filter
Built-in/Fixed
Sensor Cleaning
EOS integrated cleaning system
Colour Filter Type
Primary Colour
Image Processor
Type
DIGIC 8
Lens
Lens Mount
EF/EF-S
Focal Length
Equivalent to 1.6x the focal length of the lens
Image Stabilisation
Optical Image Stabilizer on compatible lenses.
Movie: Movie Digital IS
Focusing
Type
Via optical viewfinder:
TTL-CT-SIR with a CMOS sensor
Via liveview on LCD screen:
Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor 1
AF System / Points
AF working range
EV -3 – 18 (at 23°C & ISO100)
AF Modes
AI Focus
One Shot
AI Servo
AF Point Selection
Automatic selection: 45 point AF
Manual selection: Single point AF
Manual selection: Spot AF
Manual selection: Zone AF
Manual selection: Large Zone AF
AF points can be selected separately for vertical and horizontal shooting
Selected AF point display
Indicated by a transmissive LCD in viewfinder and Quick Control screen
Predictive AF
Yes, up to 8m
AF Lock
AF points can be selected separately for vertical and horizontal shooting
AF Assist Beam
Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
Manual Focus
Selected on lens
Focus Bracketing
Yes
AF Microadjustment
+/- 20 steps (wide and tele setting for Zooms)
Adjust all lenses by same amount
Adjust up to 40 lenses individually
Adjustments remembered for lens by serial number
Exposure Control
Metering modes
Via optical viewfinder:
220,000-pixel RGB+IR metering sensor
Metering with the area divided into 216 segments (18 × 12)
(1) Evaluative metering (linked to all AF points)
(2) Partial metering (approx. 6.5 % of viewfinder)
(3) Spot metering (approx. 2.0 % of viewfinder)
(4) Center-weighted average metering
Via liveview on LCD screen:
(1) Evaluative metering (384 zones)
(2) Partial metering (approx. 4.5 % of LCD screen)
(3) Spot metering (approx. 2.6 % of LCD screen)
(4) Center-weighted average metering
Metering Range
Via optical viewfinder:
EV 1-20 (at 23 °C with 50mm f/1.4 lens ISO 100)
Via liveview on LCD screen:
EV -2-20 (at 23 °C, ISO 100, evaluative metering)
Movie: EV 0-20 (at 23 °C, ISO 100, evaluative metering)
AE Lock
Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes.
Exposure Compensation
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
AEB
2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments
ISO Sensitivity
Auto (100-25600), 100-25600 (in 1/3-stop or whole stop increments)
ISO can be expanded to H: 51200
During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25,600
Shutter
Type
Electronically-controlled focal-plane shutter
Speed
30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode). Electronic shutter up to 1/16000
White Balance
Type
Auto white balance with the imaging sensor
Settings
AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White
Fluorescent light, Flash, Custom, Colour Temperature Setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.
Custom White Balance
Yes, 1 setting can be registered
WB Bracketing
+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.
Viewfinder
Type
Pentaprism
Coverage (Vertical/Horizontal)
Approx. 100%
Magnification
Approx. 0.95x 4
Eyepoint
Approx. 22mm (from eyepiece lens centre)
Dioptre Correction
-3 to +1 m-1 (dioptre)
Focusing Screen
Fixed (Transmissive LCD screen)
Mirror
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)
Viewfinder Information
AF information: AF points, focus confirmation, AF area selection mode
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.
Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+).
Composition information: Grid, Electronic level, Aspect Ratio
Other information: Battery check, Alert symbol, Flicker Detection
Depth of field preview
Yes, with Depth of Field preview button.
LCD Monitor
Type
Touch screen Vari angle 7.7cm (3.0″) 3:2 Clear View II TFT, approx. 1040K dots
Coverage
Approx. 100%
Viewing Angle (horizontally/vertically)
Approx 170°
Coating
Anti smudge
Brightness Adjustment
Adjustable to one of seven levels
Display Options
(1) Quick Control Screen
(2) Camera settings
(3) Electronic Level
Flash
Built-in Flash GN (ISO 100, meters)
12
Built-in Flash Coverage
up to 17mm focal length (35mm equivalent: 27mm)
Built-in Flash recycle time
Approx. 3 seconds
Modes
Auto, Manual flash, Integrated Speedlite Transmitter
X-sync
1/250sec
Flash Exposure Compensation
+/- 3EV in 1/2 or 1/3 increments
Flash Exposure Bracketing
Yes, with compatible External Flash
Flash Exposure Lock
Yes
Second Curtain Synchronisation
Yes
HotShoe / PC terminal
Yes/No
External Flash Compatibility
E-TTL II with EX series Speedlites, wireless optical multi-flash support
External Flash Control
via camera menu screen
Shooting
Modes
Scene Intelligent Auto (Stills and Movie), Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight, Group Photo, Panning), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb, Custom1, Custom 2
Picture Styles
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space
sRGB and Adobe RGB
Image Processing
Highlight Tone Priority (normal plus enhanced)
Auto Lighting Optimizer (4 settings)
Digital Lens Optimizer
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Multi Shot Noise Reduction
Auto Correction of Lens Peripheral illumination and Chromatic aberration correction
Creative Assist
Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Water painting effect, Toy camera effect, Miniature effect, HDR art vivid, HDR art bold, HDR art embossed, HDR art standard)
Multi-exposure
RAW image processing – during image Playback only
Resize to M or S1, S2
Drive modes
Single, Continuous L, Continuous H, Self timer (continuous, continuous panning, 2s+remote, 10s +remote), Silent single shooting, Silent continous shooting 5
Continuous Shooting
intervalometer
Built-in, number of shots selectable from 1-99 or unlimited. Bulb timer possible
Live View Mode
Type
Electronic viewfinder with image sensor
Coverage
Approx. 100% (horizontally and vertically)
Frame Rate
59.94 fps
Focusing
Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, Eye AF, FlexiZone-Multi, FlexiZone-Single), Tracking sensitivity adjustment (-2 to +2), acceleration tracking (-2 to +2) AF auto pt. switching (0 to +2)
Metering
Real-time evaluative metering with image sensor.
Evaluative metering, partial metering, spot metering, center-weighted average metering.
Display Options
Grid overlay (x3), Histogram, Electronic level,
File Type
Still Image Type
JPEG: Fine, Normal (Exif 2.31 compliant) / Design rule for Camera File system (2.0)
RAW: RAW (CR3 14-bit), CRAW (Compact RAW)
Digital Print Order Format [DPOF] Version 1.1 compliant
RAW+JPEG simultaneous recording
Yes, any combination of RAW + JPEG possible.
Image Size
RAW: (3:2) 6960 x 4640, (4:3) 6160 x 4640, (16:9) 6960 x 3904, (1:1) 4640x 4640
JPEG 3:2 (L) 6960 x 4640, (M) 4800 x 3200, (S1) 3472 x 2320, (S2) 2400 x 1600
JPEG 4:3 (L) 6160 x 4640, (M) 4256 x 3200 (S1) 3072 x 2320 (S2) 2112 x 1600
JPEG 16:9 (L) 6960 x 3904, (M) 4800 x 2688 (S1) 3472 x 1952 (S2) 2400 x 1344
JPEG (1:1) (L) 4640 x 4640, (M) 3200 x 3200, (S1) 2300 x 2300 (S2) 1600 x 1600
In-camera RAW processing & Image Resize available in playback
Movie Type
MP4 [Video: MPEG-4 AVC/H.264, Audio: MPEG-4 AAC-LC (stereo)]
Movie Size
Movie Length
Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically except in Timelapse Movie mode. ExFat formatted cards have no file size limitation)
Folders
New folders can be manually created and selected
File Numbering
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset
Other Features
Body Materials
Aluminum alloy and polycarbonate resin with glass fiber
Weight (body only)
Approx. 701g (CIPA testing standard, including battery and memory card)
Custom Functions
29 Custom Functions
Metadata Tag
User copyright information (can be set in camera)
Image rating (0-5 stars)
LCD Panel / Illumination
Yes/Yes
Water/Dust resistance
Yes
Sound Memo
No
Intelligent Orientation Sensor
Yes
Playback zoom
1.5x – 10x
Display Formats
(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) 36 image index
(6) 100 image index
(7) Jump Display
(8) Movie edit
Slide Show
Image selection: All images, by Date, Folder, Movies, Stills, Protect
Playback time: 1/2/3/5/10/20 seconds
Repeat: On/Off
Background music: On/Off
Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3
Histogram
Brightness: Yes
RGB: Yes
Highlight Alert
Yes
Image Erase/Protection
Erase: Single image, Select range, All images in folder, All images on card
Protection: Single image, select range, all images in folder, all images on a card
Menu Categories
(1) Shooting menu (x6)
(2) Playback menu (x4)
(3) Wireless menu
(4) Setup menu (x5)
(5) Custom Functions menu
(6) My Menu
Menu Languages
29 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesian, and Japanese
Firmware Update
Update possible by the user.
Interface
Computer
USB Micro-B
Interface Cable IFC-600PCU
Wi-Fi
Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only, 1-11 ch)
Wi-Fi Security
Camera Access Point: WPA2-PSK with AES encryption or open
Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open
Bluetooth
Bluetooth® (Specification version 4.1, Bluetooth low energy technology) 9
Other
HDMI mini output
Output of YCbCr 4:2:2, 8bit over HDMI for video streaming is possible with or without shooting info.
Output options include [With info], [Clean / 4K output], and [Clean / FHD output]. HDR output of photos to compatible TV supported
External microphone (3.5mm Stereo mini jack), Headphone socket (Stereo mini jack)
Direct Print
Canon Printers
Canon Compact Photo Printers and PIXMA Printers supporting PictBridge via wireless LAN
PictBridge
Yes (via Wireless LAN)
Storage
Type
SD, SDHC, SDXC (UHS-II compatible)
Supported Operating System
PC & Macintosh
Windows 10 / 8.1 / 7 SP1 10
Mac OS X 10.14 / 10.13 / 10.12
Software
Image Processing
Digital Photo Professional 4
DPP Express
Other
Picture Style Editor,
EOS Utility,
Image Transfer Utility
Picture Style editor
Camera Connect app available on iOS and Android devices with operating system iOS 11.4 (or later) or Android 5.0 (or later)
Power Source
Batteries
Rechargeable Li-ion Battery LP-E6N (supplied), built in for date & settings
Battery life
Approx. 1300 (at 23°C, AE 50%, FE 50%)11
Approx. 1200 (at 0°C, AE 50%, FE 50%)
Battery Indicator
6 levels + percentage
Power saving
Power turns off after 1, 2, 4, 8, 15 or 30mins.
Accessories
Viewfinder
Eyecup Eb
Rubber Frame Eb, E-series Dioptric Adjustment Lens
Eyepiece Extender EP-EX15
Magnifier MG-Eb
Angle Finder C
Case
Leather case EH21-L
Wireless File Transmitter
Built in Wi-Fi transmission
Bluetooth functionilty with Camera Connect app requires smart device to be equipped with Bluetooth version 4.0 (or later). Also requires smart device to be using operating system iOS 11.4 (or later) or Android 5.0 (or later)
Lenses
All EF and EF-S lenses
Flash
Canon Speedlites (90EX, 220EX, 270EX, 270EX II, EL-100, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 470EX-AI, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
Battery Grip
BG-E14
Remote Controller / Switch
Remote Switch RS-60E3, Remote Controller RC-6, Remote Controller BR-E1, Timer Remote Controller TC-80N3 only when used with Remote Controller Adapter RA-E3
Other
Directional Stereo Microphone DM-E1
GPS Reciever GP-E2
Hand Strap E2
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
- Dual Pixel CMOS AF – AF is possible over an area of up to approx. 100% Vertical x 88% Horizontal of the frame depending on the lens used
- Peripheral Cross type AF points will not function as a cross type AF points with the following lenses: EF 35-80mm f4-5.6 (II/III/USM), EF35-105mm f4.5-5.6 (USM). EF 80-200mm f4.5-5.6 (II)
- The number of AF points, cross-type AF points, and dual cross-type AF points vary depending on the lens used. For full compatibility list please refer to product manual on www.canon-europe.com/support
- With 50mm lens at infinity, -1m-1 dpt
- Silent drive mode reduces the noise of the mirror mechanism, electronic shutter mode in Live View is available for silent single shots
- Based on Canon’s testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
- Sustained continuous shooting speed is tested based on Canon’s testing standard. Function requires compatible UHS II memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card
- 4K Movie or 120fps Full HD requires UHS-I Speed Class 3 or higher, Full HD requires SD Speed class 10 or higher
- Bluetooth functionilty with Camera Connect app requires smart device to be equipped with Bluetooth version 4.0 (or later). Also requires smart device to be using operating system iOS 11.4 (or later) or Android 5.0 (or later)
- Software applications compatible with Windows 10 in Windows 10 Desktop Mode only
- Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
In The Box
)
What’s in the box
- Digital Camera EOS 90D body Black
- Eyecup EF
- Camera Cover R-F-3
- Wide Strap EW-EOS 90D
- Battery Pack LP-E6N (with battery cover)
- Battery Charger LC-E6E
- Power Cable
- User Manual Kit
